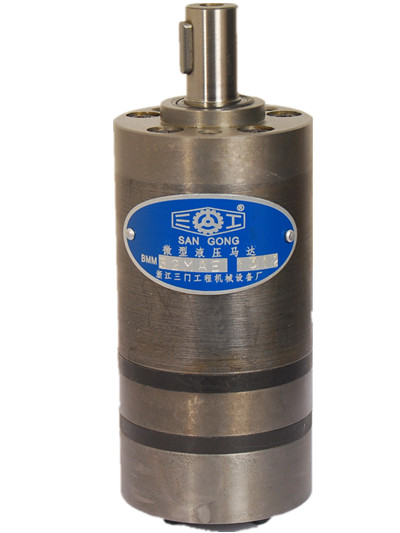

BMM(OMM) SERIES HYDRAULIC MOTOR

  BMM(OMM) series motor are small volume, economical type, which is designed with shaft
distribution flow, which adapt the Gerotor gear set design and provide compact volume,
high power and low weigth.
Characteristic features:

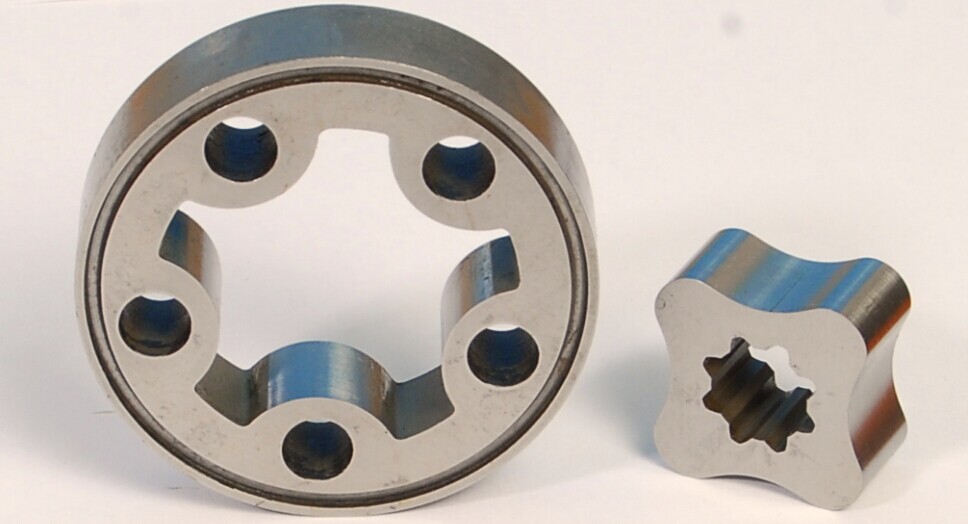

* Advanced manufacturing devices for the Gerotor gear set, which provide
small volume, high efficiency and long life.

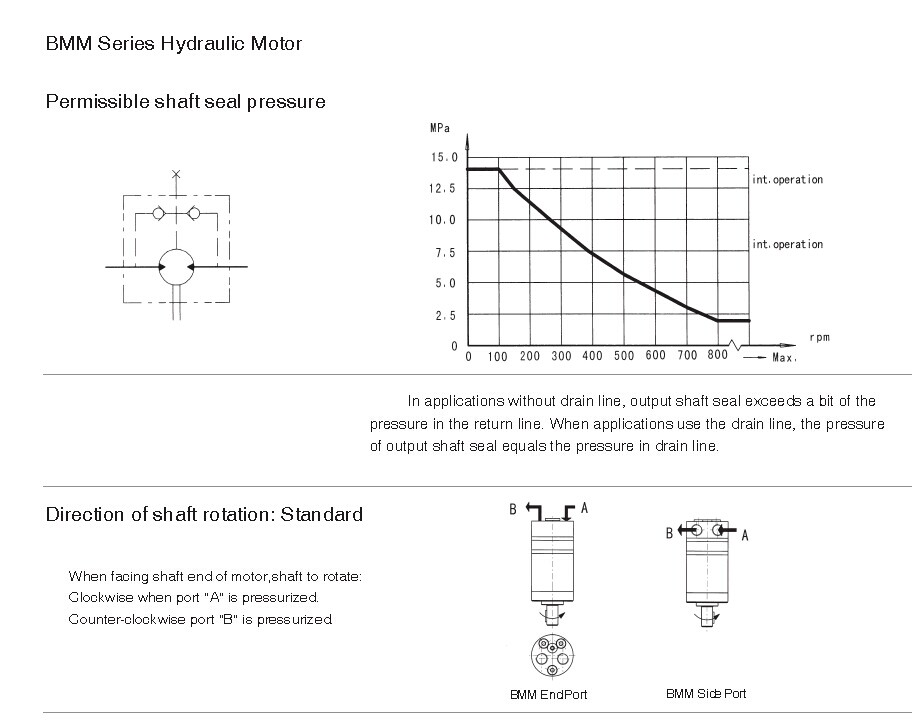

* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.

Usage Guide

In order to make the motors working in optimal situation, we recommend the following:

1.Oil temperature :normal 20℃~60℃ upper limit 90℃(no more than one hour).
2.Filtering and oil cleanliness :a return filter should be installed in the system with a fineness in the range of
10~30μm and a piece of magnet should be installed at the bottom of the tank to prevent grits into the system.
The max solid contamination grade of the oil is no more than 19/16.
3.Viscosity: 42~74 mm2/s at 40℃ of oil temperature ,according to the condition to choose an applicable hydraulic oil.
4.The motors can be operated in parallel or in series. When the pressure of the back exceeds 2MPa,it is
necessary to install an external drain line to the tank.
