CB-B SERIES GEAR PUMP
Product Numbers:20131226234359
Price:Negotiable
Product introduction:As a hydraulic energy to provide a flow pressure in hydraulic system of machine tools or other machinery,Gear pump is to use a pair of mutually engaged gears will be output by the motor mechanical energy into hydraulic energy conv

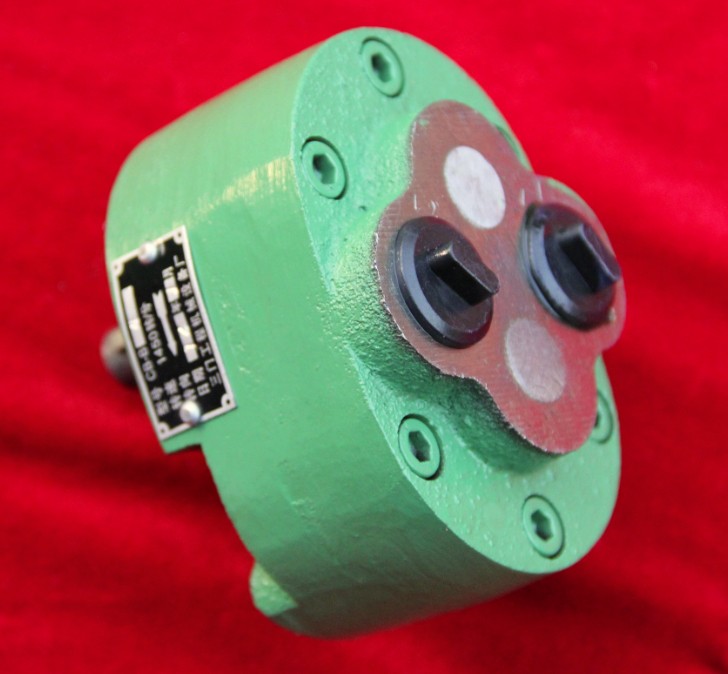

CB-B series gear pump
As a hydraulic energy to provide a flow pressure in hydraulic system of machine tools or other machinery,Gear pump is to use a pair of mutually engaged gears will be output by the motor mechanical energy into hydraulic energy conversion device.
Characteristic:
Small size，light weight，simple structure，Reliable operation，And convenient maintenance
Technical parameters:
Traffic: 2.5-125L/min;
Pressure: 2.5MPa;
Power: 0.13-6.5kw;
Speed: 1450r/min
Traffic: 2.5-125L/min;
Pressure: 2.5MPa;
Power: 0.13-6.5kw;
Speed: 1450r/min

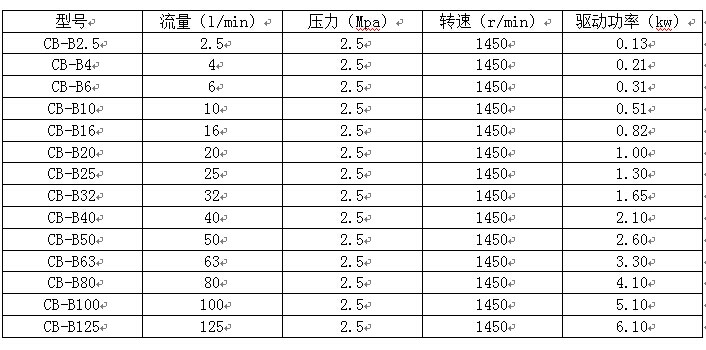

Performance parameters:

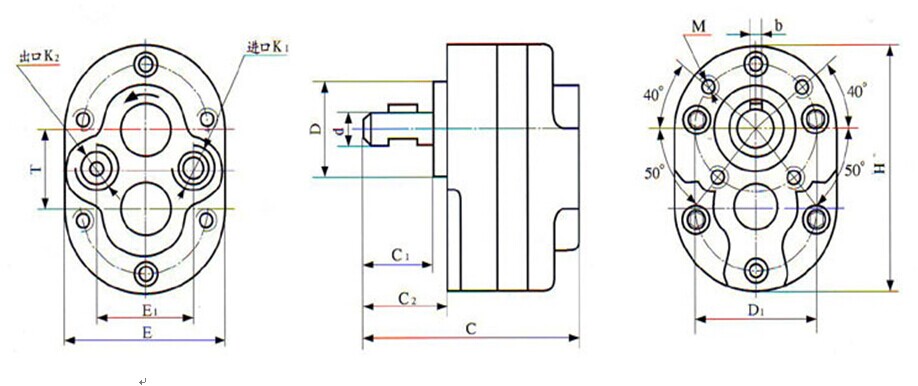

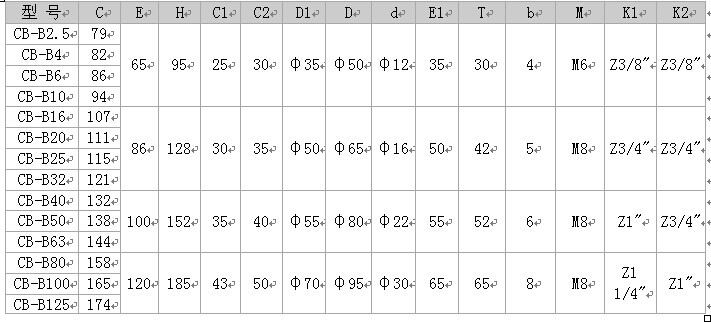

Mounting dimensions:
